Model No.: AOT-4073
Compatible: IEC 62196 (Type 2)- GBT
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

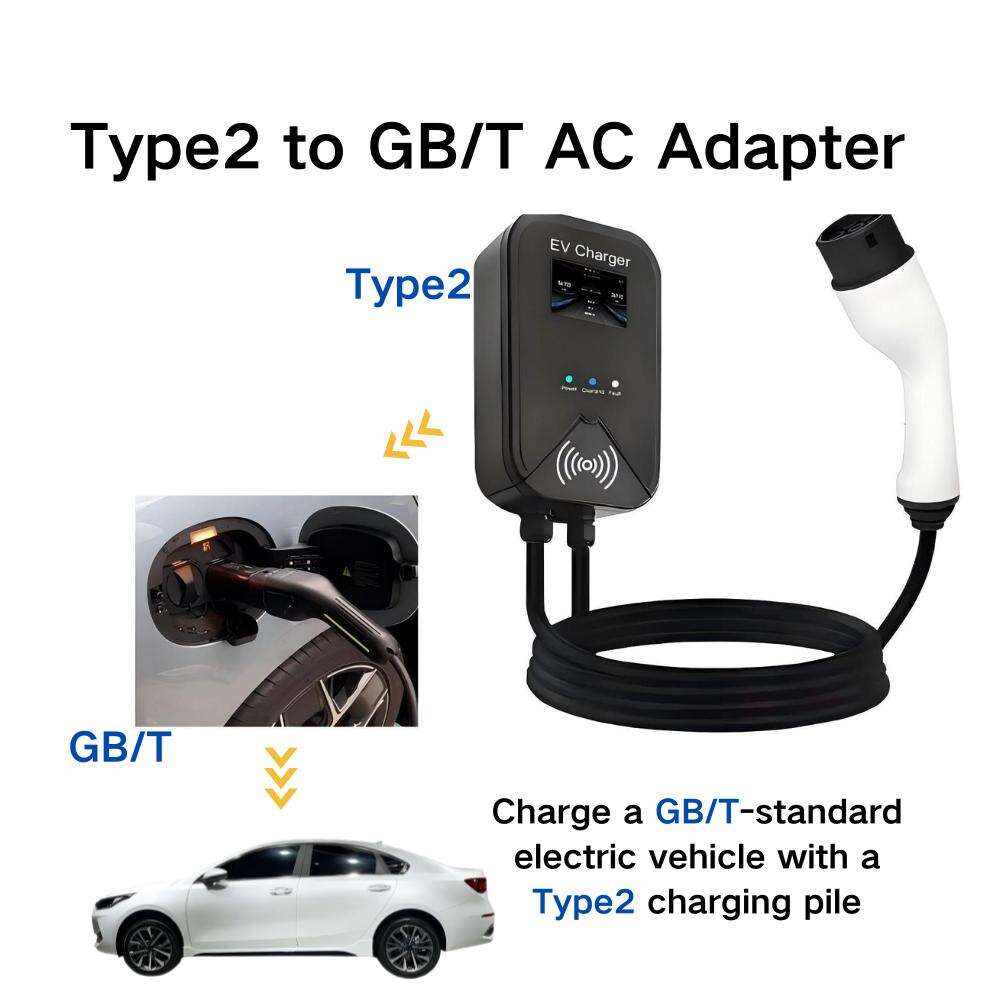

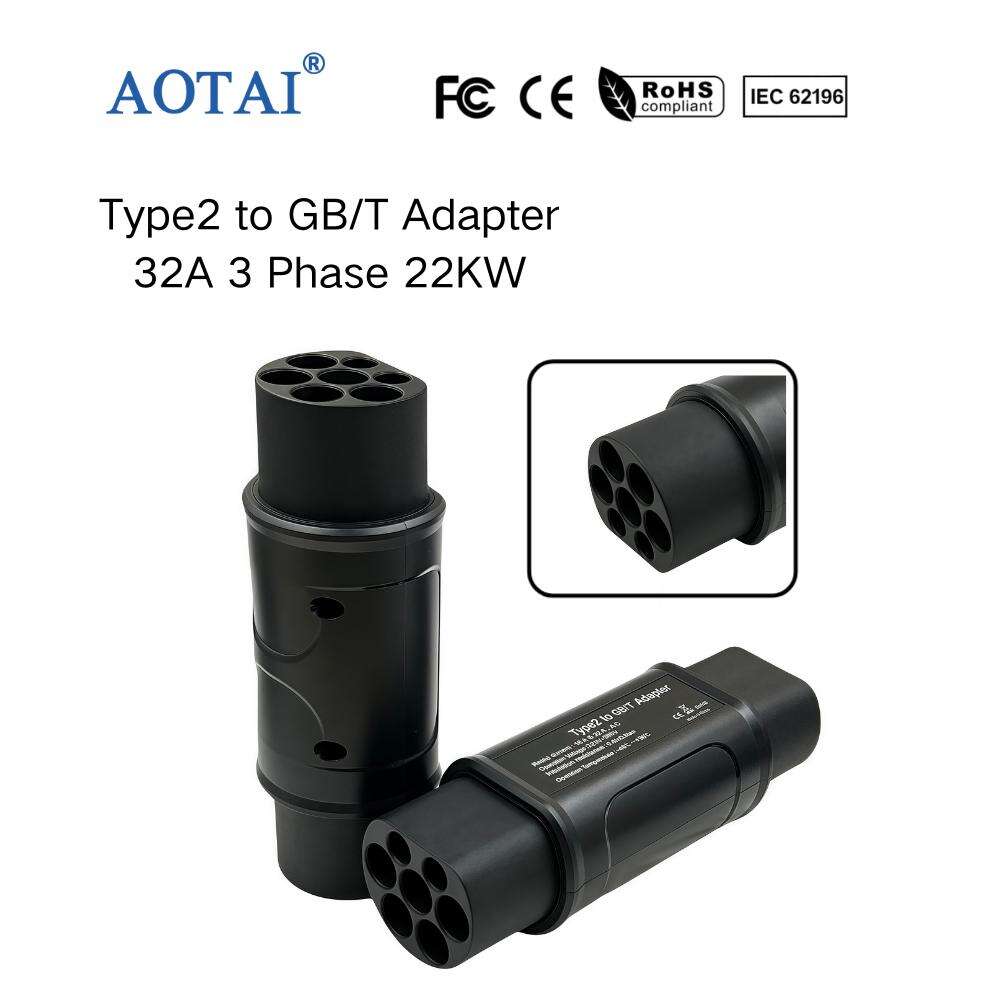

This Type 2 To GBT Adapter (IEC 62196 To GB/T) allows you to charge Chinese electric vehicles at Type 2 AC stations.
There are two variants of this adapter: single-phase, up to 7 kW and three-phase, up to 22 kW. This converter meets all safety requirements.
It is CE certified and complies with the IEC 62196 standard.
The pin head is thoughtfully designed with safety insulation, preventing accidental direct contact with human hands and providing an extra layer of protection.
The housing material is made of durable and flame-retardant thermoplastic with a UL94V-0 rating.
The adapter is compatible with all electric cars which have a GB/T port including the Tesla Model 3 and Y, BMW iX3, VW iD.4/iD.5/iD.6, Audi e-tron, BYD and many more.
| Power: | Up to 22 KW |
| Rated voltage: | 250V/AC |
| Current : | Up to 32A |
| Degree of protection (IP class): | IP54 |
| Power Supply: | 1-Phase/3-Phase |
| Housing material: | Thermoplastic |
| Operational Temperature: | -30 °C to +50 °C |
| Weight : | 500gram |
| Norm : | FCC,CE |
| Color: | Black |
We recommend to use the following steps:
1. Plug in the Type 2 end of the adapter to the charging cable
2. Plug in the GBTend of the adapter to the Chinese car’s charging socket
3. After the Type 2 to GBT 32A adapter has clicked in place you are ready for the charge*
*Don’t forget to activate the charging station
When you finish with the charge, disconnect the vehicle side first and then the charging station side. Remove the cable from the charging station when not in use.
This is some other EV adapter:
| 1 | AOT-4523 | GBT to J1772 Adapter | GBT charging Stations - J1772 EVs |
| 2 | AOT-4526 | Type2 to Tesla Adapter | Type 2 charging Stations-Tesla EVs |
| 3 | AOT-4528 | Tesla to GBT Adapter | Tesla charging Stations- GBT Evs |
| 4 | AOT-3979 | J1772 to Type 2 Adapter | Type 1 charging Stations - Type 2 EVs |
| 5 | AOT-3980 | Type 2 to J1772 Adapter | Type 2 charging Stations- Type 1 EVs |
| 6 | AOT-4599 | Type 2 to j1772 Adapter | Type 2 Charging Stations- Type 1 EVs |
| 7 | AOT-4074 | Gbt to Type 2 Adapter | GBT charging Stations- Type 2 EVs |
| 8 | AOT-4580 | Gbt to Type 2 Adapter | GBT charging Stations- Type 2 EVs |
| 9 | AOT-4073 | Type 2 to Gbt Adapter | Type 2 Charging Stations- GBT EVs |
| 10 | AOT-4598 | Type 2 to Gbt Adapter | Type 2 Charging Stations- GBT EVs |
| 11 | AOT-4527 | Tesla to Type 2 Adapter | Tesla Charging Stations- Type 2 EVs |
| 12 | AOT-4524 | Gbt to Tesla Adapter | GBT charging Stations- Tesla EVs |
| 13 | AOT-4525 | J1772 to Gbt Adapter | Type 1 Charging Stations- GBT EVs |
| 14 | AOT-3915 | J1772 to Tesla Adapter | Type 1 Charging Stations- Tesla EVs |
| 15 | AOT-4097 | Tesla to J1772 Adapter | Tesla charging Stations- Type 1 EVs |
Always check the cable, adapter and the contacts for damage and contamination before using them.
Never use a damaged product for charging.
Never use contacts that are dirty or damp.
Only connect the charging adapter to vehicle inlets and infrastructure socket outlets that are protected against water, moisture and liquids.
Never use force to disconnect the plugs. Dangerous electric arcs could result in serious injury or death.
There are electric vehicles that can be started with the cable connected. Always make sure to disconnect it before driving away.
If the connector is smoking or melting, never touch it. If possible, stop the charging process. Press the emergency stop switch on the charging station in any case.
Make sure that the cable is out of the reach of children. Only persons with a valid driver’s license for motor vehicles can use it.
