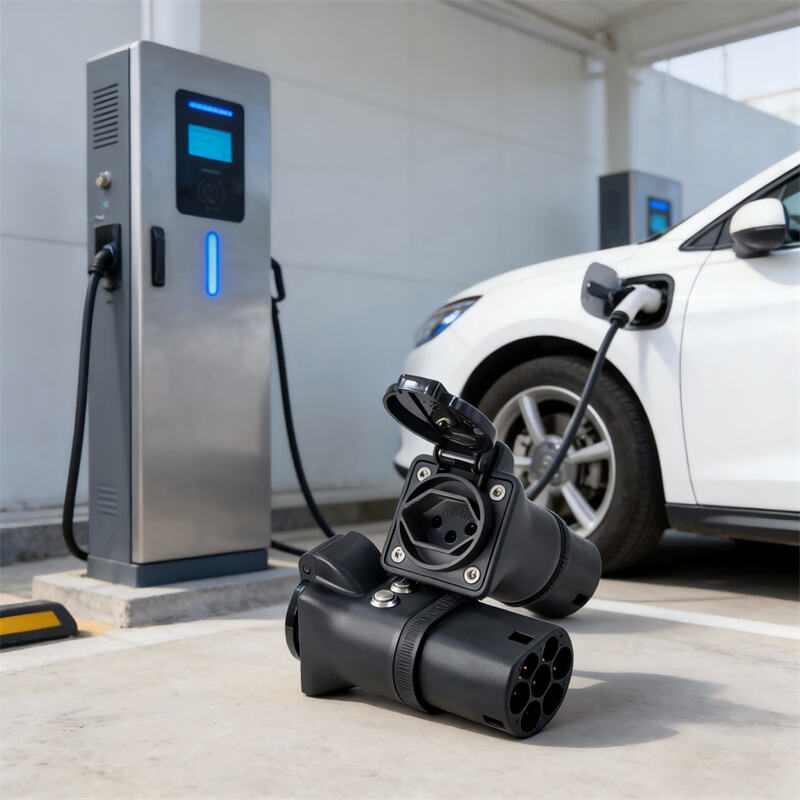

Model No.: AOT-4257
Compatible: Type 2 EV charging station/ Type 2 Power point
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

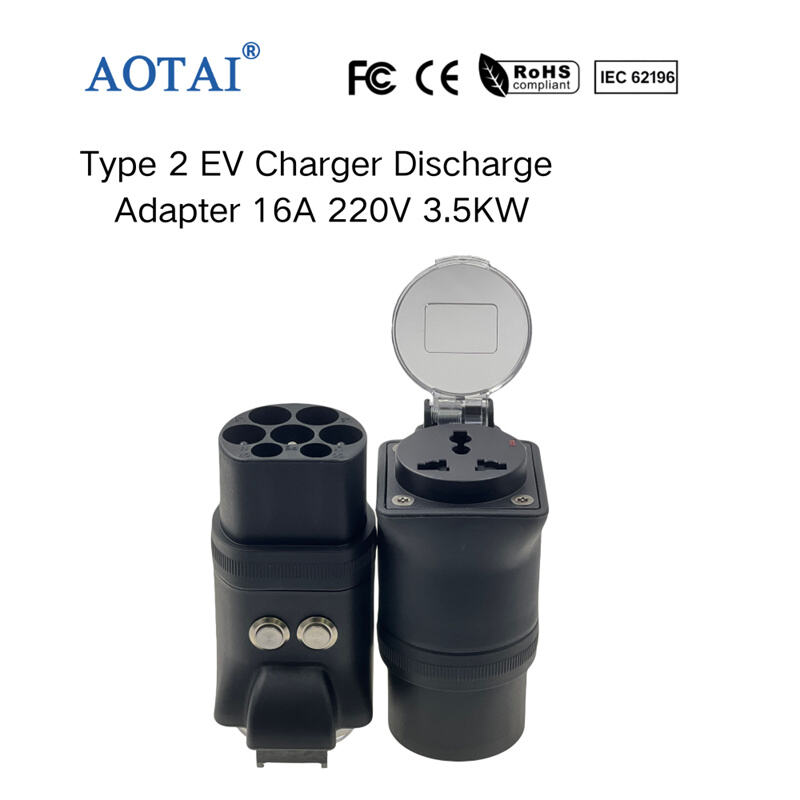

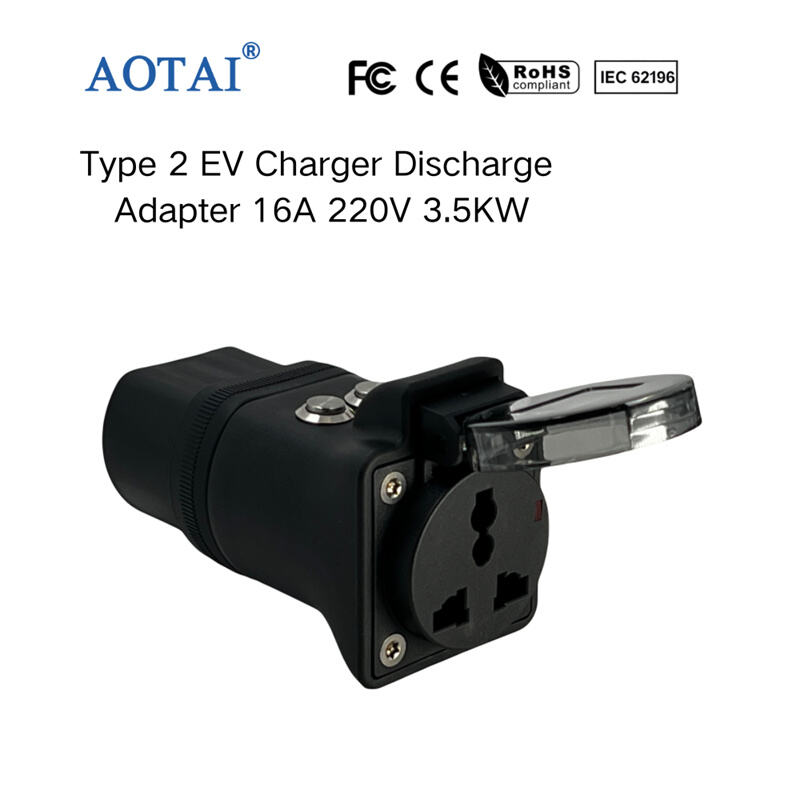

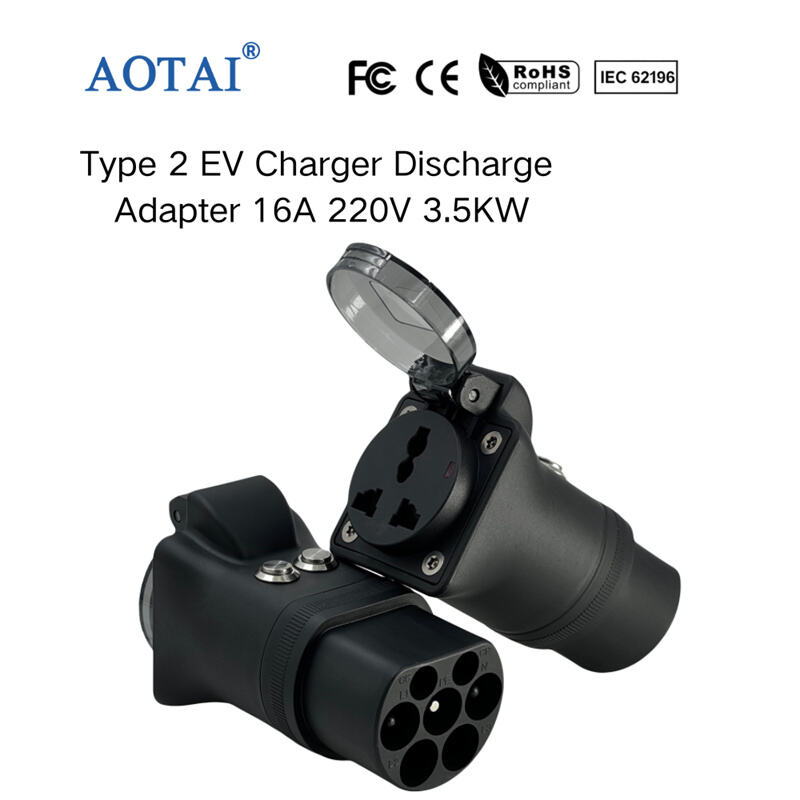

Type2 to AC adapter
1.Enables charging from Type 2 charging stations with a normal socket
2. Supplied with a key switch which sends a stop signal and releases the type 2 plug from the charging station
3. Suitable for older electric cars, MC cars and the like that can only charge from a normal socket
4. Protective cover- prevents dust and dirt from getting into the type 2 plug while in storage
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V~230V |
| Current : | Up to 16A |
| Degree of protection (IP class): | IP44 |
| Input frequency: | 50 Hz |
| Housing material: | Thermoplastic |
| Dimensions (max / length) | 55 mm / 155 mm |
| Weight : | 300 gram |
| Norm : | FCC,CE |
| AC socket: | Universal AC socket |
1. Plug charging connector to charging station Type 2 socket.

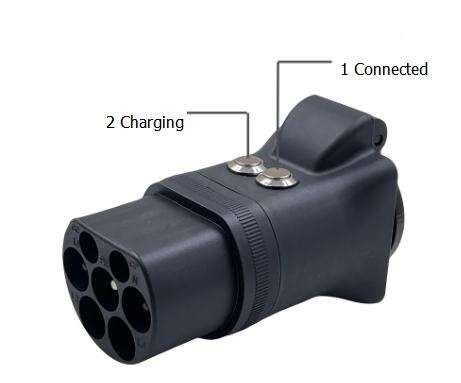

2. Turn-on Switch (1) (see picture above) => charging station gets the message “car connected” and locks the connector (if it features plug lock function).
3. Turn-on Switch (2) (see picture above) => immediately after switching on switch (2), charging station gets the message “car ready to charge”.
4.Then charging station energizes its relays/contactors and you have voltage/power on connector’s Schuko outlet.
When you want to stop charging, use the opposite procedure; first turn-off second switch (2) and then first one (1). This will de-energize the connector, unlock the connector at charging station socket and let you pull out the connector.
AOTAI warrants its product to the original consumer purchaser that it will repair, or replace, any product that is determined to be defective for the following terms: Two (2) years from date of purchase on all components.
To be eligible for repair or replacement under this warranty, the product in question must be sent back to AOTAI within the warranty period and the original consumer purchaser must comply with the following conditions:
• The product thereof must not have been modified or altered in any way by an unauthorized source.
• The product thereof must have been used in accordance with the user manual.
This limited warranty does not cover: Damage due to improper use; Accidental or intentional damage; Misuse, abuse, corrosion, or neglect; Product impaired by severe natural conditions, such as excessive hail storms, lightning strikes, flooding, ice or other natural occurrences; Damage due to improper packaging on return shipment.
