Model No.: AOT-4188
Compatible: Type 2 EV charging station/ Type 2 Power point
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

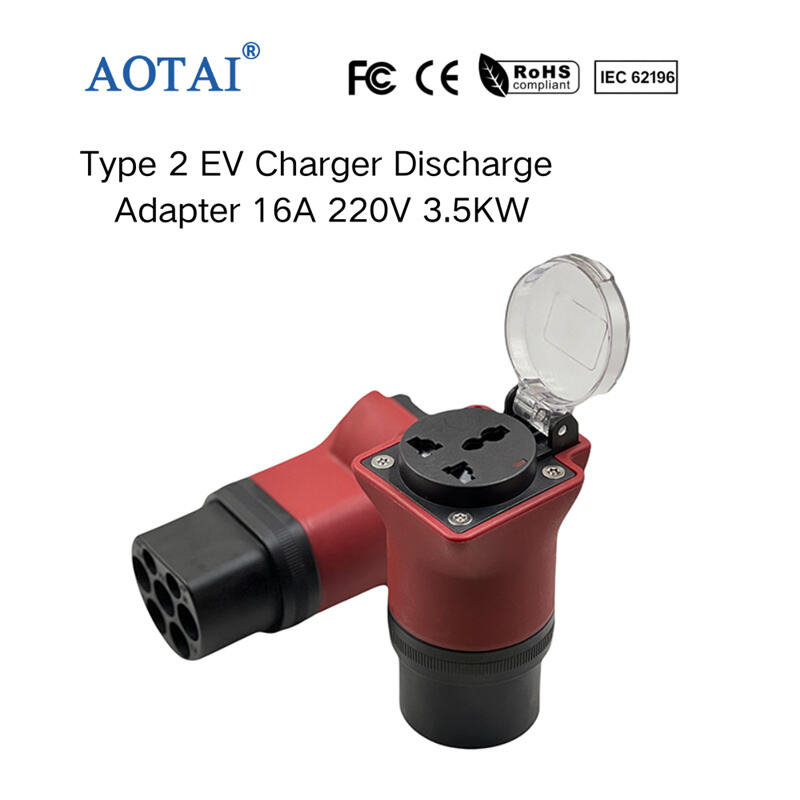

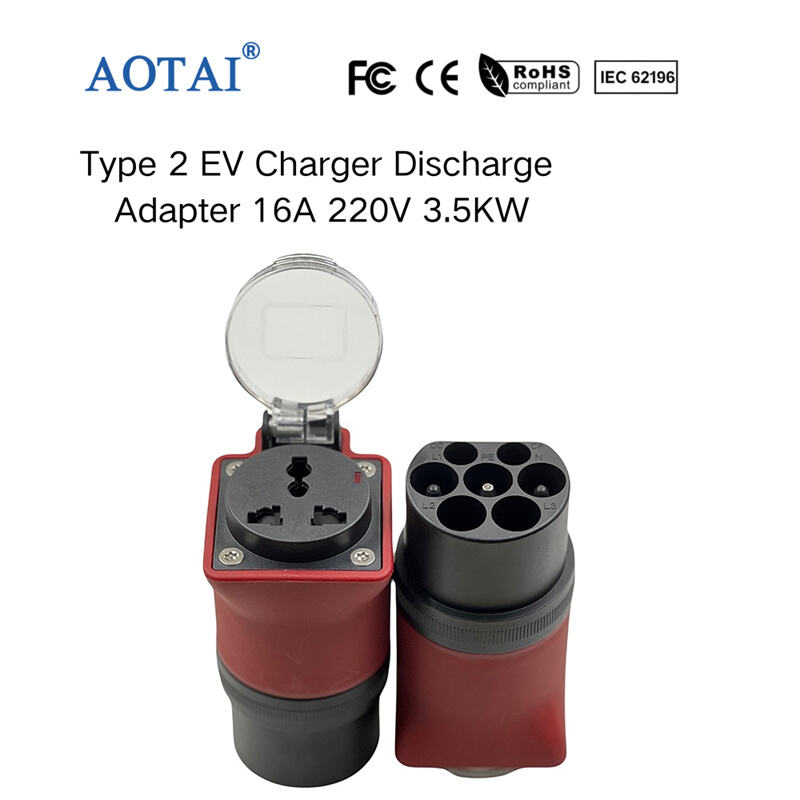

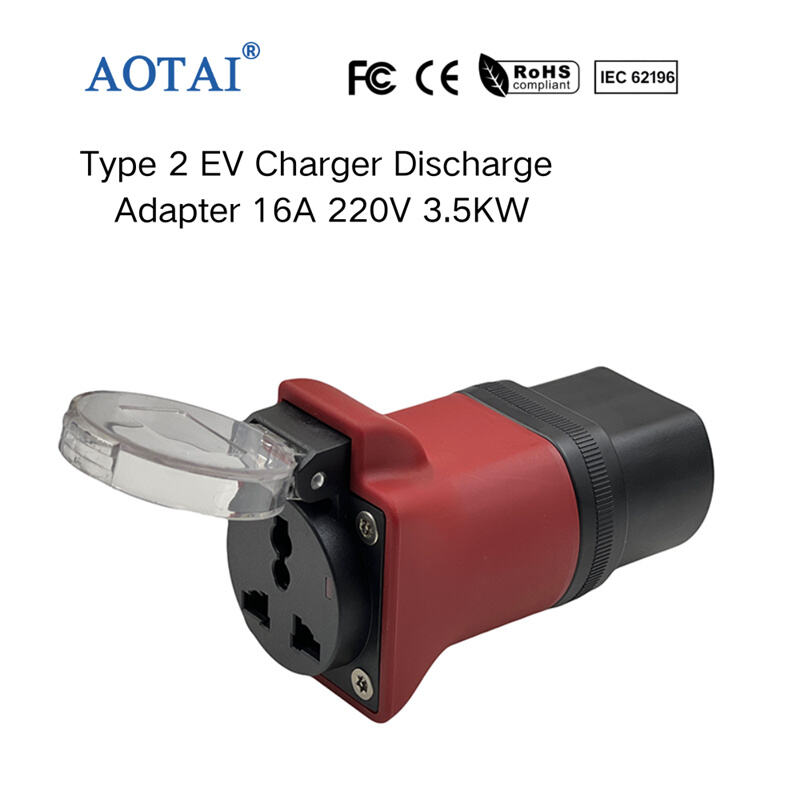

Type2 to AC universal adapter 16A 3.54KW 230V
Type 2 to Universal adapter: type 2 EV adapter is compatible with type 2 chargers, type 2 charging cables and type 2 charging stations according to IEC 62196 and converts type 2 sockets into universal AC sockets.
HIGH PERFORMANCE: With a maximum output of 16A, 220V AC, the adapter converts a Type 2 charger or charging station into a standard AC outlet to quickly power other devices.
Safe and Stable: The adapter has passed strict certifications and successfully passed more than 20,000 safety tests. It is flame retardant according to UL94 V-0, waterproof to IP44 and can be safely used in a temperature range of -30°C to 50°C.
Easy to carry: compact size, only 155mm, easy to carry and use, can be stored anywhere in the car to save space.

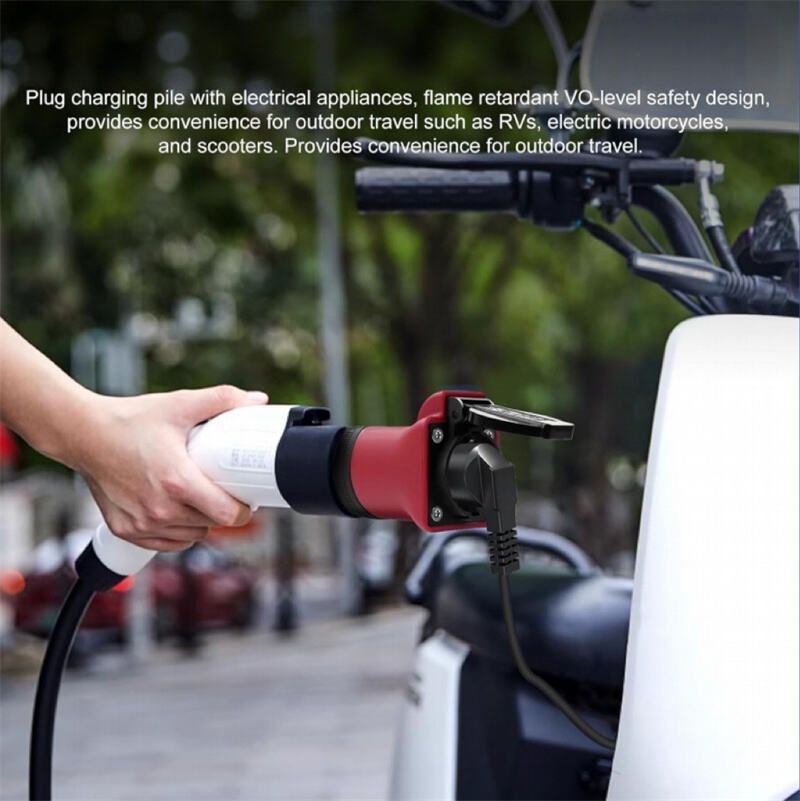

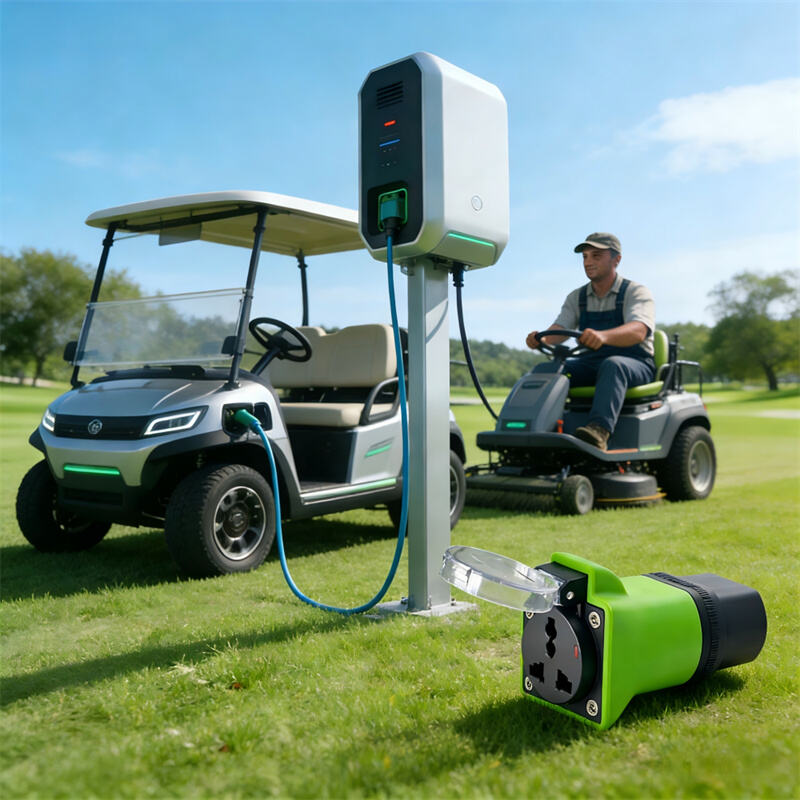

MULTI-FUNCTIONAL USE : The adapter allows you to convert a Type 2 charger or charging station into a universal AC socket. This allows household appliances, electric motorcycles, e-bikes, e-scooters, electric scooters and other devices that use the AC universal plug to be powered.
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V~230V |
| Current : | Up to 16A |
| Degree of protection (IP class): | IP44 |
| Input frequency: | 50 Hz |
| Housing material: | Thermoplastic |
| Dimensions (max / length) | 55 mm / 155 mm |
| Weight : | 260 gram |
| Norm : | CE (TÜV), FCC, RoHS, IEC 62196 compliant |
| Color: | Red/custom |

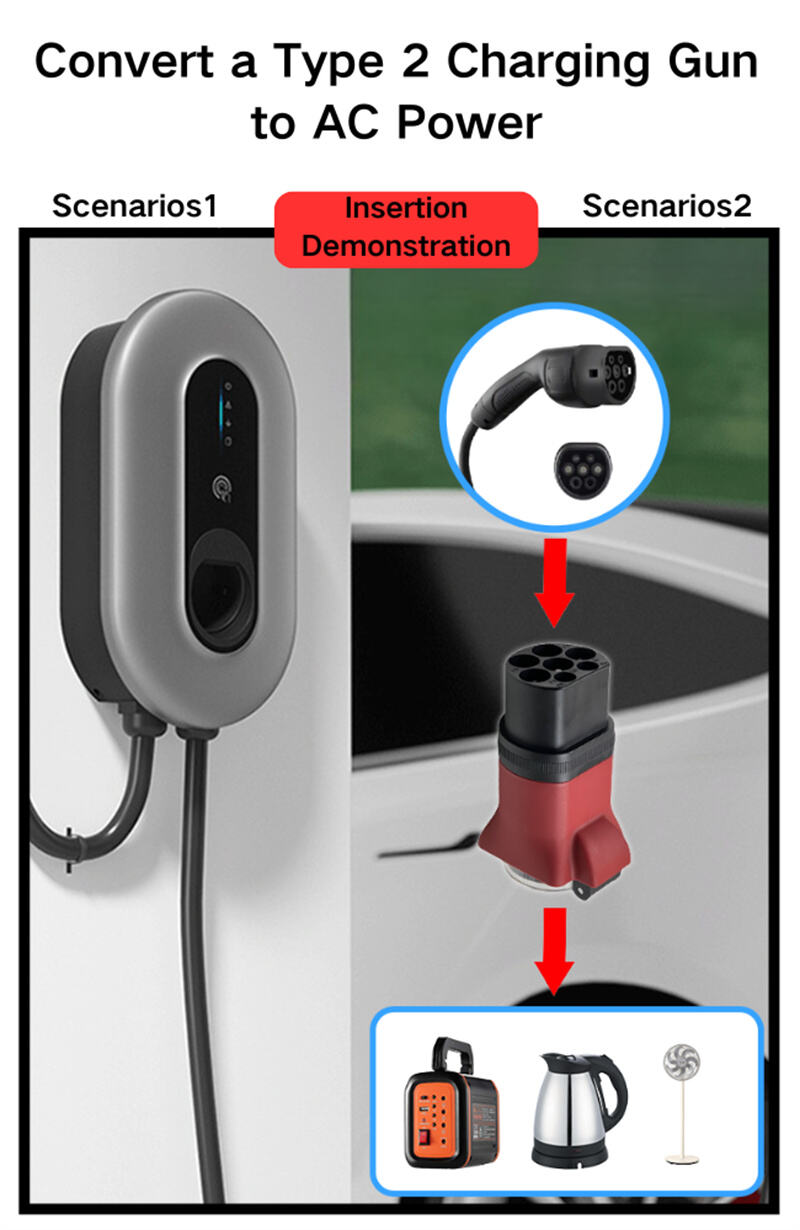

1. Connect to the charging station
Start by connecting the charging adapter to the Type 2 socket of the charging station. Make sure the adapter is firmly and fully inserted into the wall socket to ensure a good connection.
2. Connect to your device
Connect the AC plug of your vehicle to the charging adapter. Check that the plug is properly secured to ensure a stable and safe charging connection.
3. Activate the charging station
Use a payment card, charging card or a switch (if applicable) to activate the charging station. The charging station will now start supplying power via the charging adapter to your vehicle.
Charging adapter/ transition from type 2 (Mennekes) to standard socket (universal) for older electric vehicles, MC cars and the like that can only be charged from a normal socket (mode 1). Also practical if you only have a type 2 connector ad what to connect work tools like a vacuum cleaner. If you have an electric vehicle with a type 1 or type 2 charging connector, mode 3 charging cables must be used.
IMPORTANT NOTICE:Do not have a V2L function. Only suitable for Type 2 charging stations and wall boxes with manual stop button. Box contents: 1 x Type 2 to AC ev adapter. If you have any questions, please contact us.
