Model No.: AOT-4189
Compatible: Type 2 EV charging station/ Type 2 Power point
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

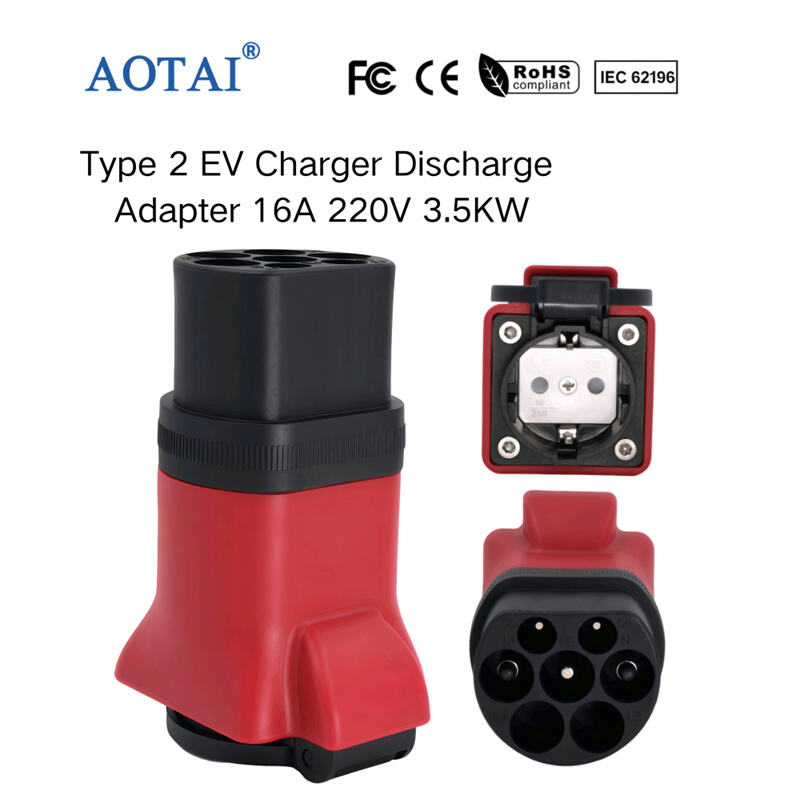

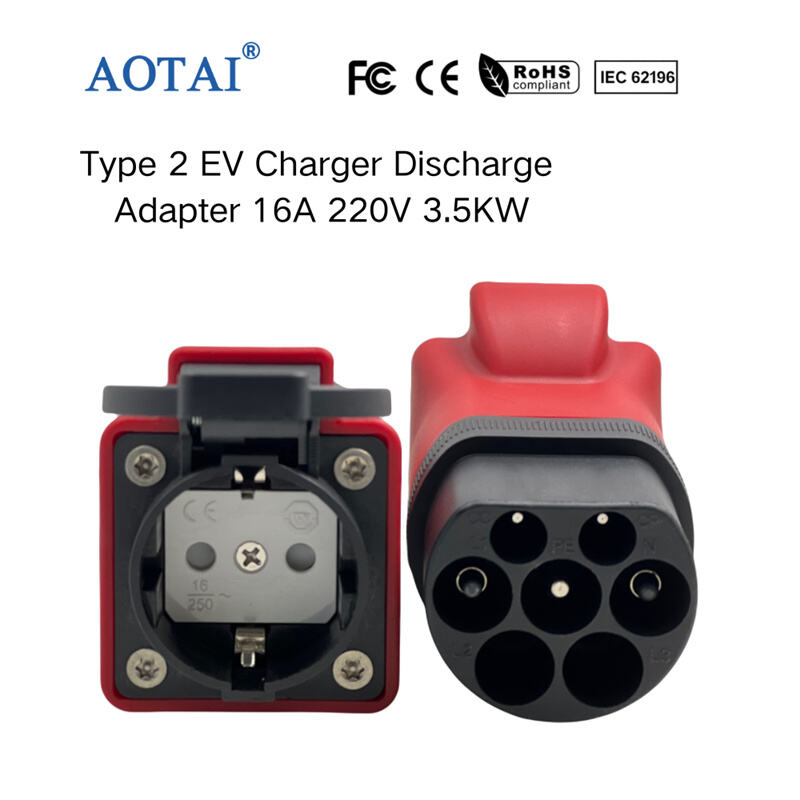

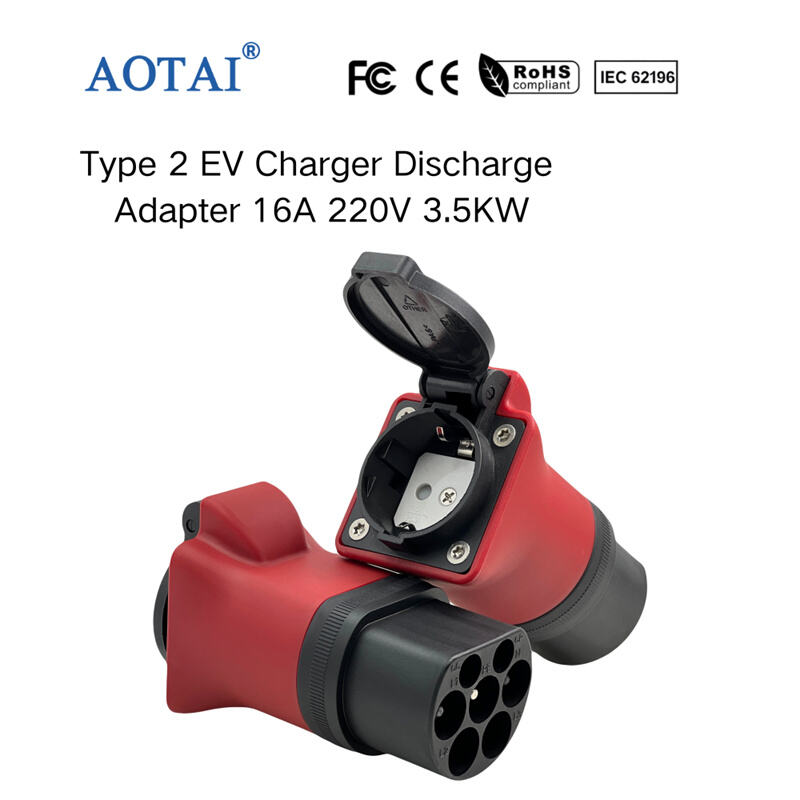

Type2 to Schuko adapter 16A 3.54KW 230V

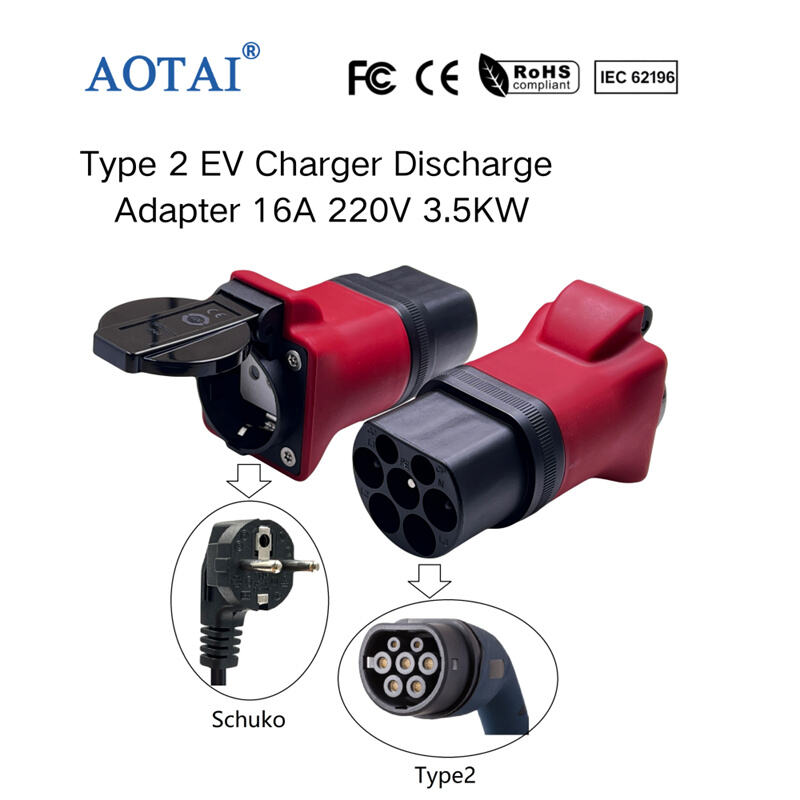

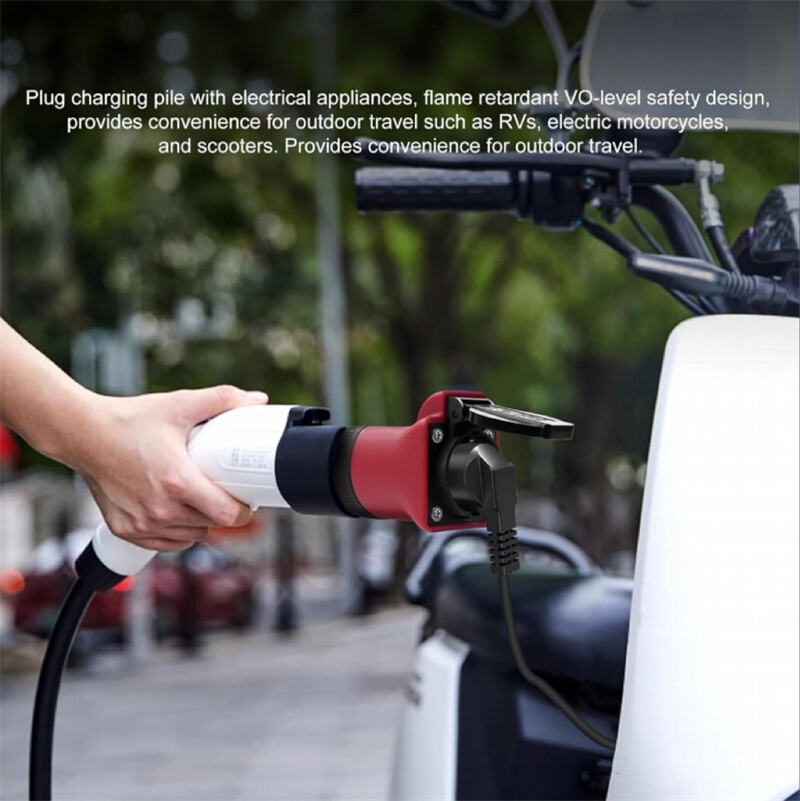

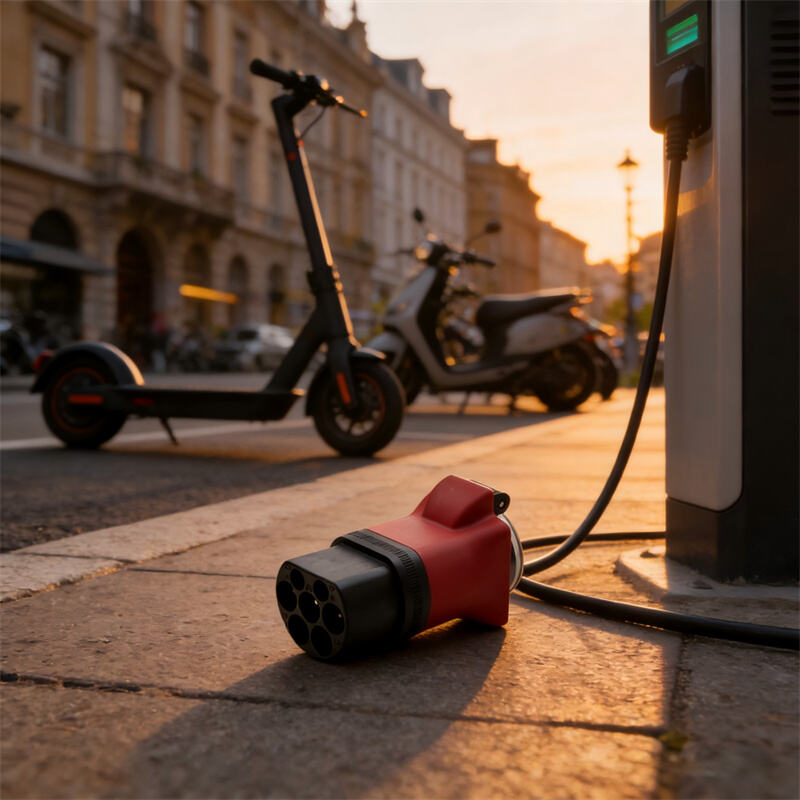

Type 2 to Schuko: The type 2 discharger is suitable for chargers or charging stations according to IEC 62196. The adapter from type 2 socket to universal socket supports charging any electrical device via a universal plug that is compatible with your electric motorcycles, e-bikes, e-scooters, etc.

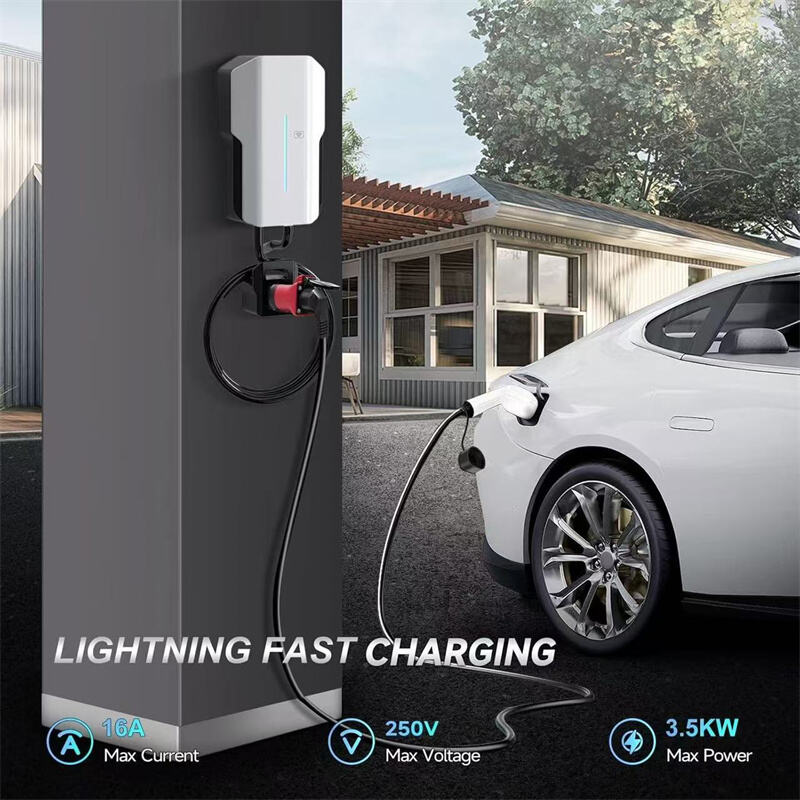

FAST AND SAFE CHARGING: With a maximum voltage of 250V and a maximum current of 16A, this Type 2 to Schuko adapter allows fast and safe charging of your electric vehicle with an output power of up to 3.5kW.
Portable and easy to use: the type 2 to Schuko EV charging cable converter turns your electric vehicle car charger into a power outlet.

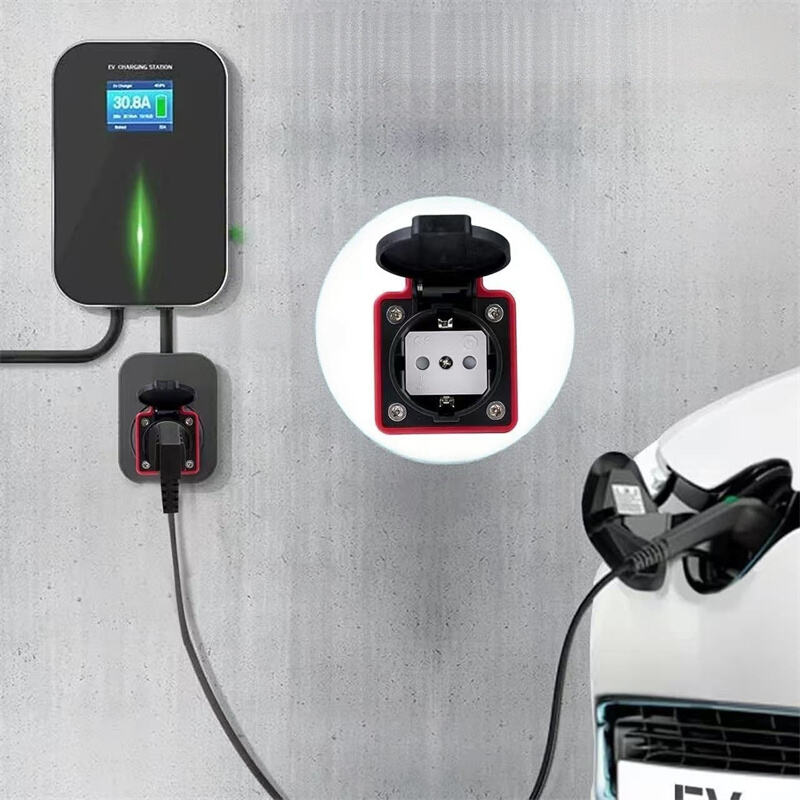

Multifunctional: with this adapter, the wallbox/charging station can be used as a normal household socket, it is also the best choice for electric car charger adapter with Schuko charging cable.
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V~230V |
| Current : | Up to 16A |
| Degree of protection (IP class): | IP44 |
| Input frequency: | 50 Hz |
| Housing material: | Thermoplastic |
| Dimensions (max / length) | 55 mm / 155 mm |
| Weight : | 260 gram |
| Norm : | CE (TÜV), FCC, RoHS, IEC 62196 compliant |
| AC socket: | Universal AC socket |
1. Connect to the charging station
Start by connecting the charging adapter to the Type 2 socket of the charging station. Make sure the adapter is firmly and fully inserted into the wall socket to ensure a good connection.
2. Connect to your device
Connect the AC plug of your vehicle to the charging adapter. Check that the plug is properly secured to ensure a stable and safe charging connection.
3. Activate the charging station
Use a payment card, charging card or a switch (if applicable) to activate the charging station. The charging station will now start supplying power via the charging adapter to your vehicle.
