Model No.: AOT-4199
Compatible: Type 2 EV charging station/ Type 2 Power point
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

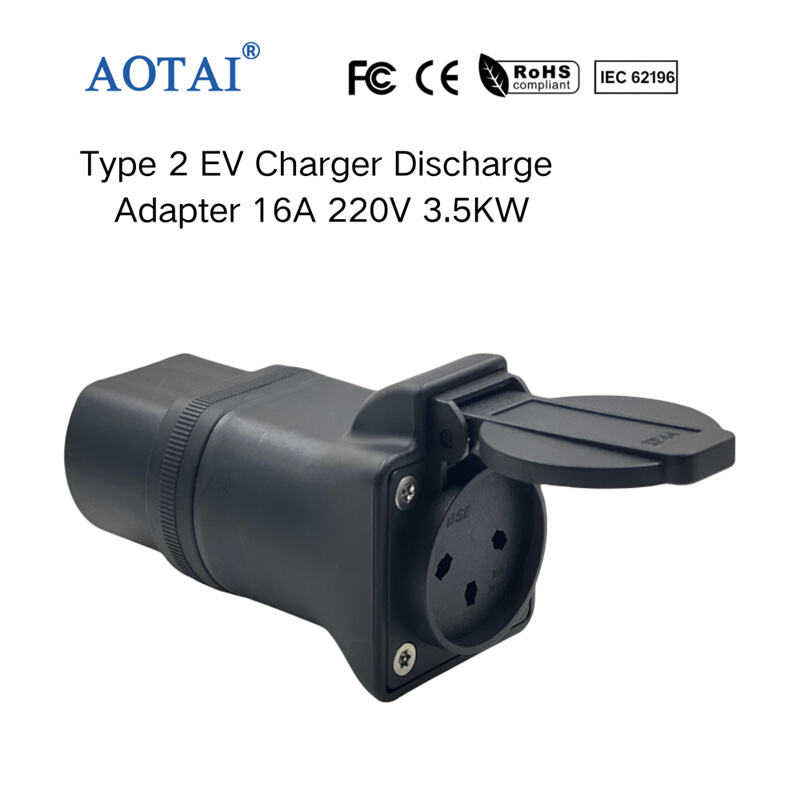

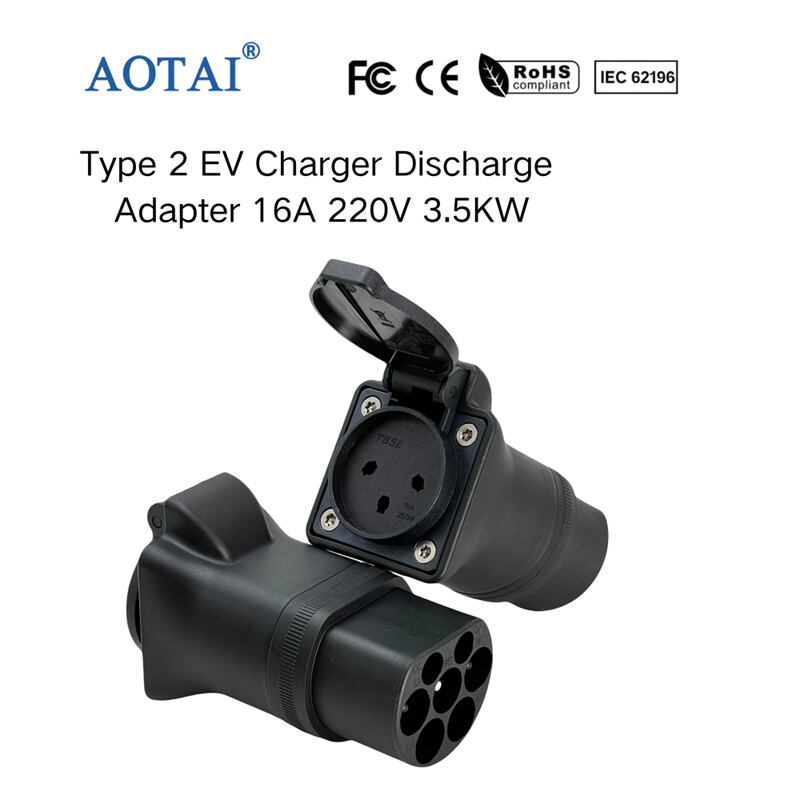

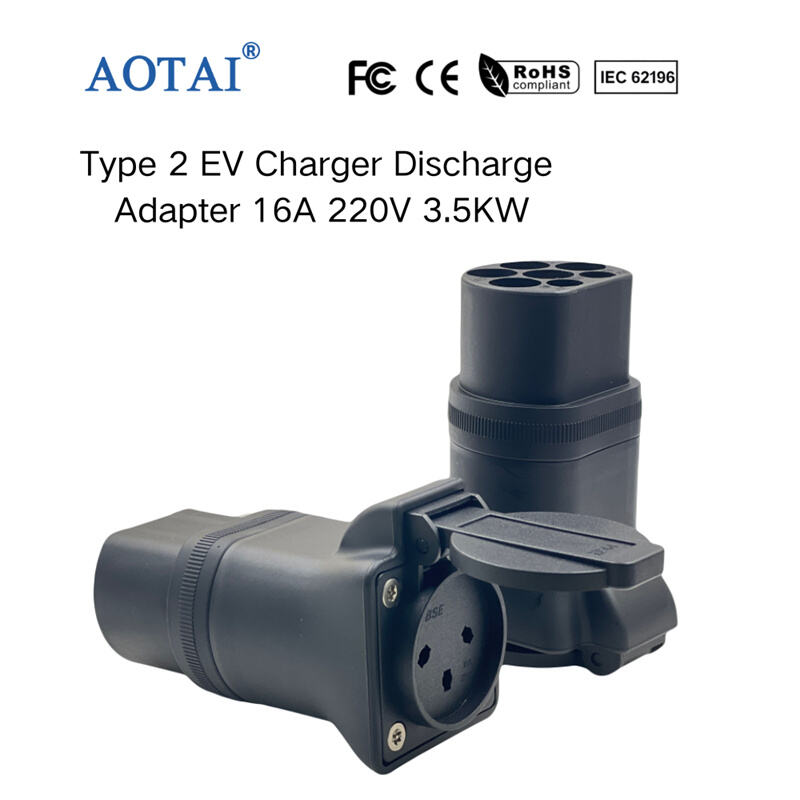

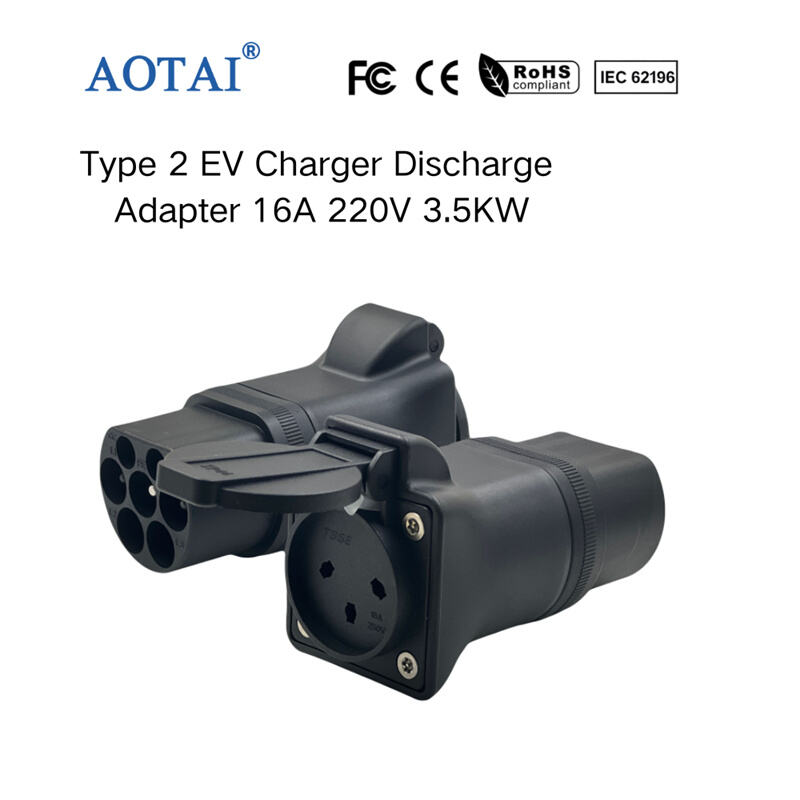

Type2 to Israeli socket adapter 16A 3.54KW 230V

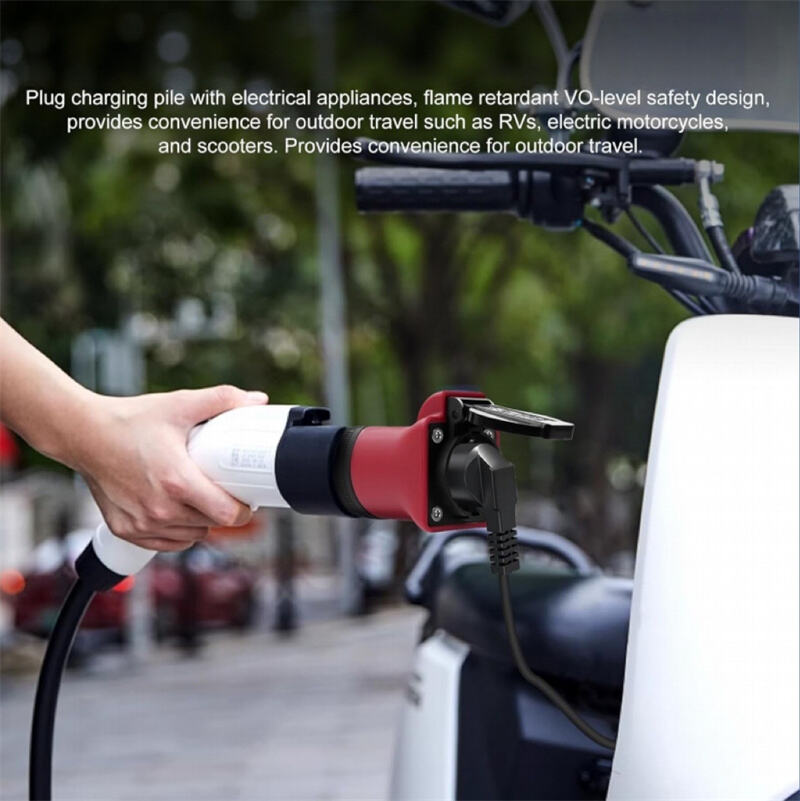

The Type 2 to Israeli socket adapter can convert a Type 2 charger or charging station into a shuko socket, allowing safe and efficient charging for electric motorcycles, e-bikes, electric wheelchairs, electric scooters, electric wheelchairs, electric scooters, electric wheelchairs, and other devices with Israeli socket sockets.
Maximum power: 3.5 kW (16A/250V). Temperature range: -30°C to +50°C. The Type 2 to Israeli socket adapter allows you to quickly and safely charge your electric vehicle with an output power of up to 3.5 kW, a maximum voltage of 250 V 16 A. A maximum output of 16 A.
This type 2 to Israeli socket adapter with dust cap for additional protection has an IP44 classification and is splash-proof, but not fully waterproof. Do not use it in heavy rain or when exposed to direct water.
Type 2 to Israeli socket Adapter Product Features: High-quality thermoplastic housing; Silver-plated contacts for optimal conductivity; Extremely durable (up to 20,000 times. Compact dimensions (14 cm/5.5 inches); lightweight and portable.
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V~230V |
| Current : | Up to 16A |
| Degree of protection (IP class): | IP44 |
| Input frequency: | 50 Hz |
| Housing material: | Thermoplastic |
| Dimensions (max / length) | 55 mm / 155 mm |
| Weight : | 260 gram |
| Norm : | CE (TÜV), FCC, RoHS, IEC 62196 compliant |
| AC socket: | Israeli socket |
1. Connect to the charging station
Start by connecting the charging adapter to the Type 2 socket of the charging station. Make sure the adapter is firmly and fully inserted into the wall socket to ensure a good connection.
2. Connect to your device
Connect the AC plug of your vehicle to the charging adapter. Check that the plug is properly secured to ensure a stable and safe charging connection.
3. Activate the charging station
Use a payment card, charging card or a switch (if applicable) to activate the charging station. The charging station will now start supplying power via the charging adapter to your vehicle.
Charging adapter/ transition from type 2 (Mennekes) to standard socket (universal) for older electric vehicles, MC cars and the like that can only be charged from a normal socket (mode 1). Also practical if you only have a type 2 connector ad what to connect work tools like a vacuum cleaner. If you have an electric vehicle with a type 1 or type 2 charging connector, mode 3 charging cables must be used.
IMPORTANT NOTICE:Do not have a V2L function. Only suitable for Type 2 charging stations and wall boxes with manual stop button. Box contents: 1 x Type 2 to Israeli socket adapter. If you have any questions, please contact us.
