Model No.: AOT-4212
Compatible: Type 2 EV charging station/ Type 2 Power point
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

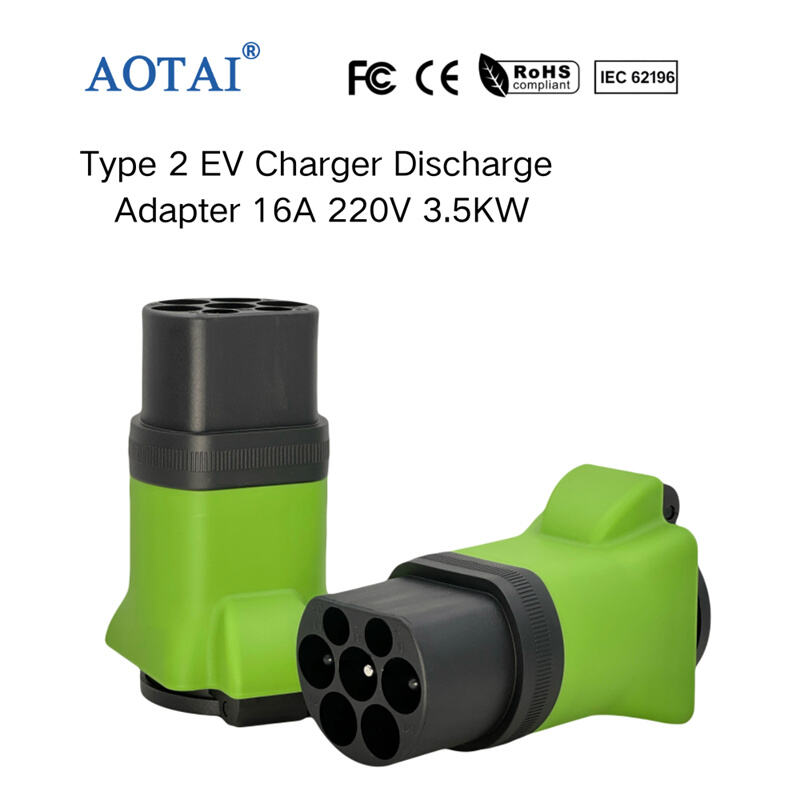

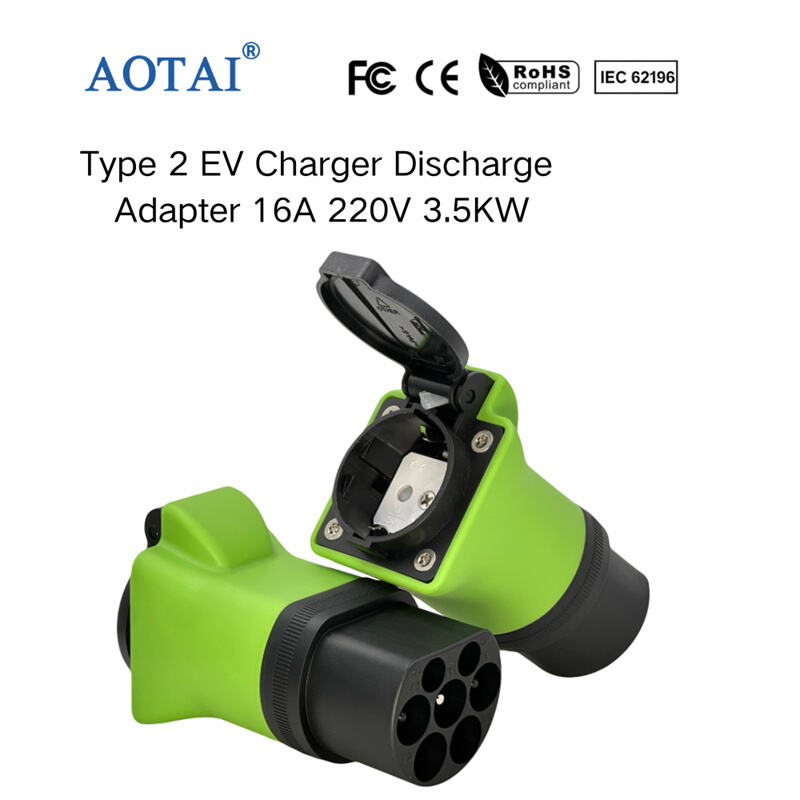

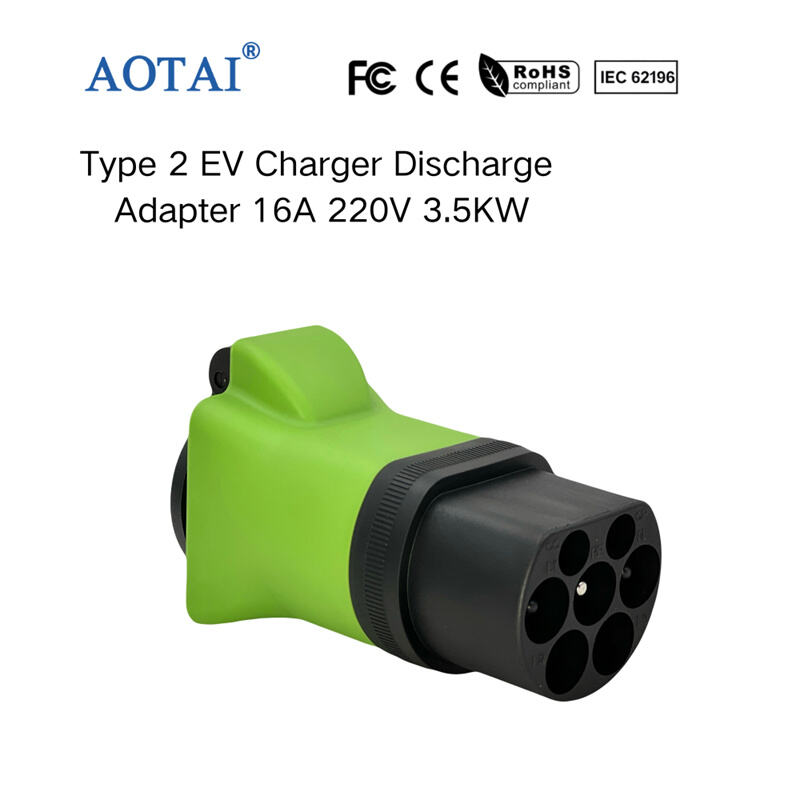

Type2 to universal EV adapter 16A 3.54KW 230V

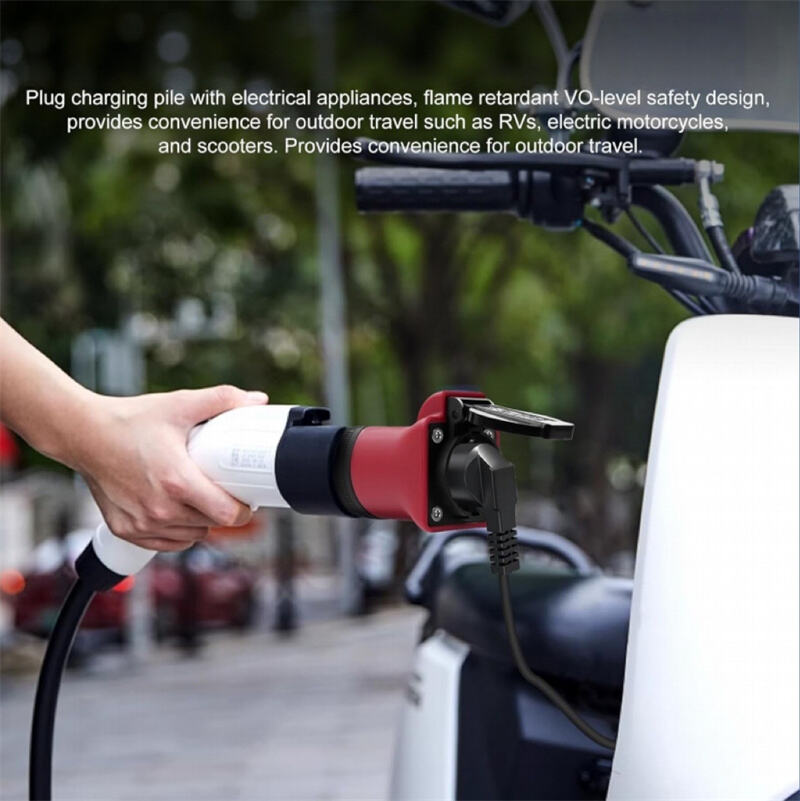

The Type 2 to Schuko adapter can convert a Type 2 charger or charging station into a shuko socket, allowing safe and efficient charging for electric motorcycles, e-bikes, electric wheelchairs, electric scooters, electric wheelchairs, electric scooters, electric wheelchairs, and other devices with Schuko sockets.

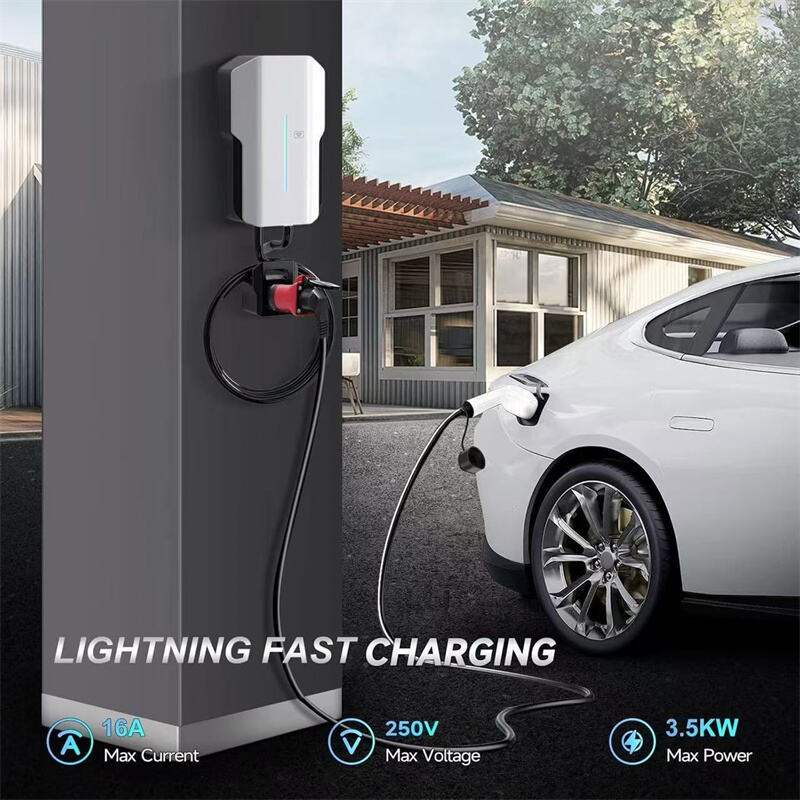

Maximum power: 3.5 kW (16A/250V). Temperature range: -30°C to +50°C. The Type 2 to Schuko adapter allows you to quickly and safely charge your electric vehicle with an output power of up to 3.5 kW, a maximum voltage of 250 V 16 A. A maximum output of 16 A.

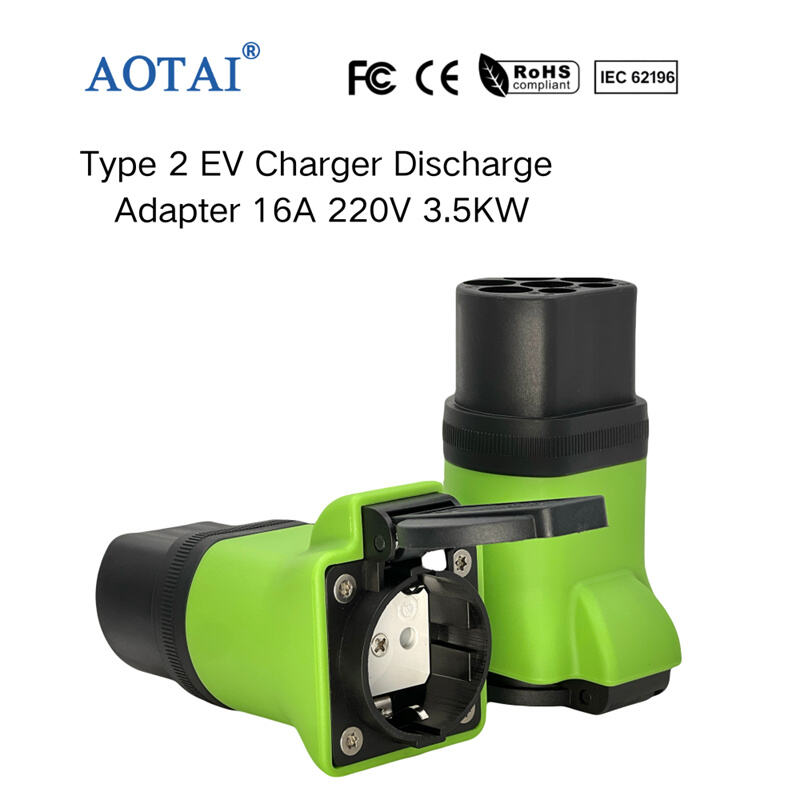

This type 2 to Schuko adapter with dust cap for additional protection has an IP44 classification and is splash-proof, but not fully waterproof. Do not use it in heavy rain or when exposed to direct water.
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V~230V |
| Current : | Up to 16A |
| Degree of protection (IP class): | IP44 |
| Input frequency: | 50 Hz |
| Housing material: | Thermoplastic |
| Dimensions (max / length) | 55 mm / 155 mm |
| Weight : | 260 gram |
| Norm : | CE (TÜV), FCC, RoHS, IEC 62196 compliant |
| AC socket: | Schuko socket |

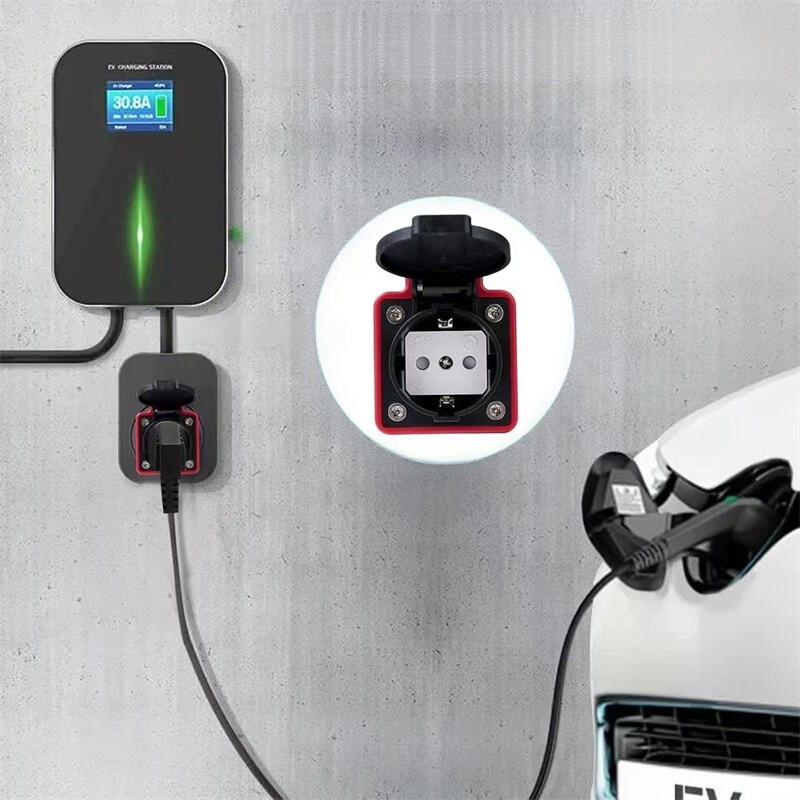

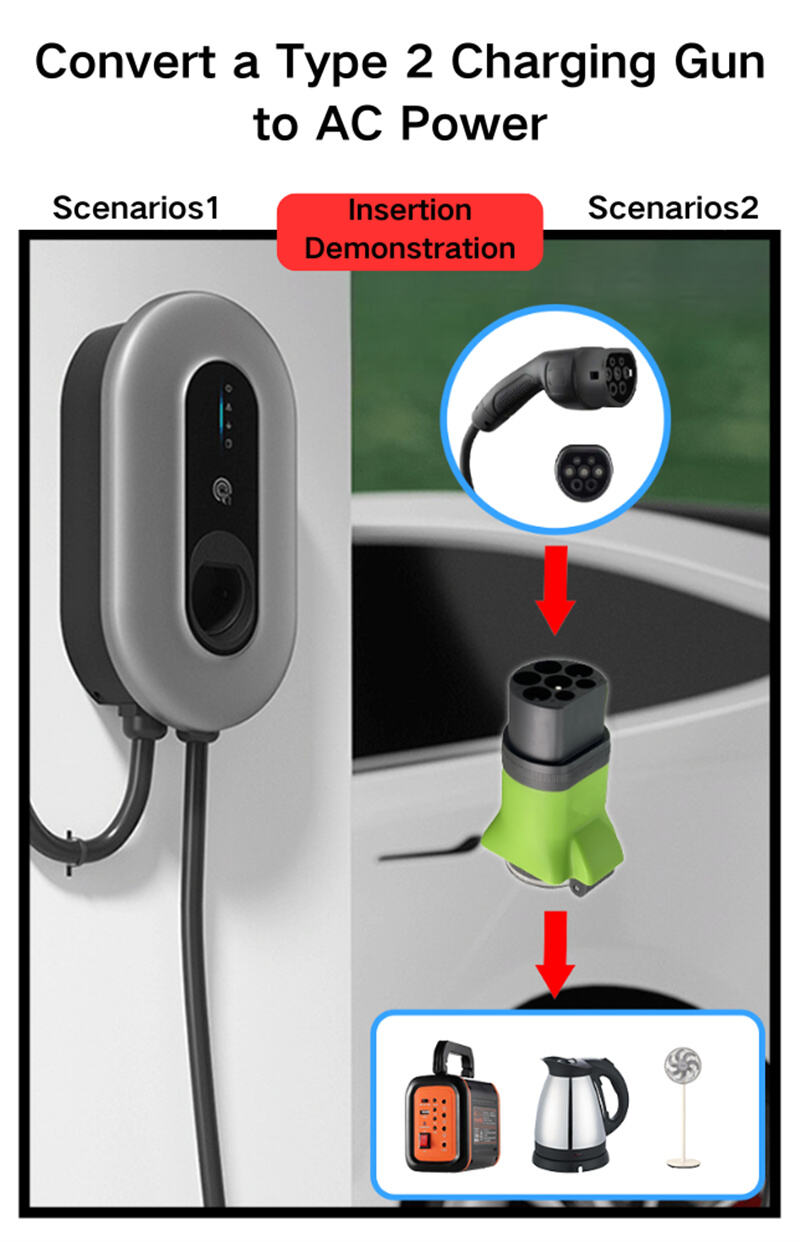

1. Connect to the charging station
Start by connecting the charging adapter to the Type 2 socket of the charging station. Make sure the adapter is firmly and fully inserted into the wall socket to ensure a good connection.
2. Connect to your device
Connect the AC plug of your vehicle to the charging adapter. Check that the plug is properly secured to ensure a stable and safe charging connection.
3. Activate the charging station
Use a payment card, charging card or a switch (if applicable) to activate the charging station. The charging station will now start supplying power via the charging adapter to your vehicle.
IMPORTANT NOTICE:Do not have a V2L function. Only suitable for Type 2 charging stations and wall boxes with manual stop button. Box contents: 1 x Type 2 to schuko adapter. If you have any questions, please contact us.
