Model No.: AOT-4508-Black
Compatible: Type 2 BYD EVs- Schuko Socket
MOQ: 1pcs
Warranty service :12 month
OEM: Yes

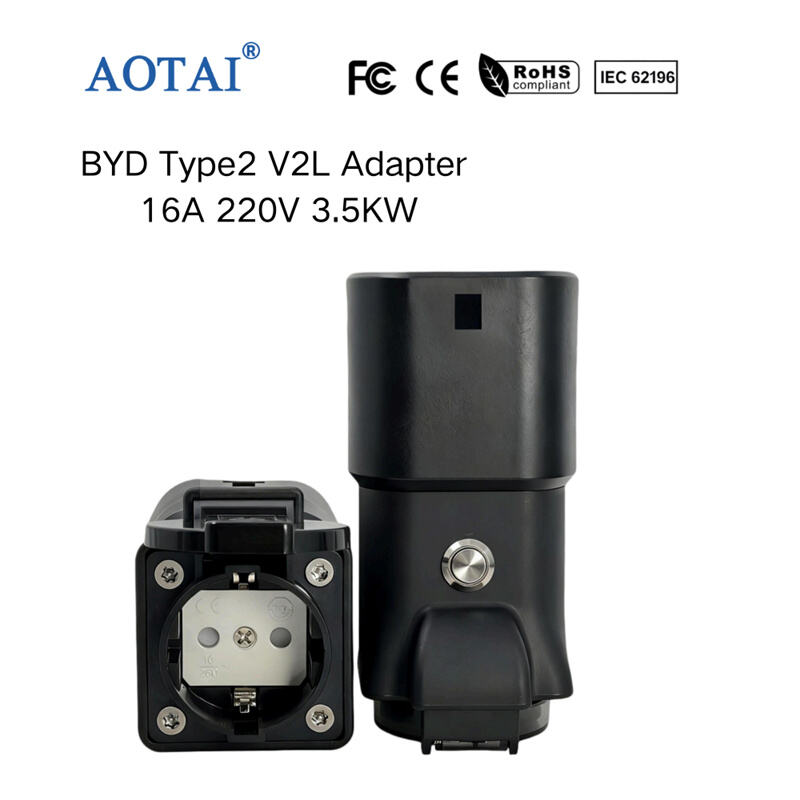

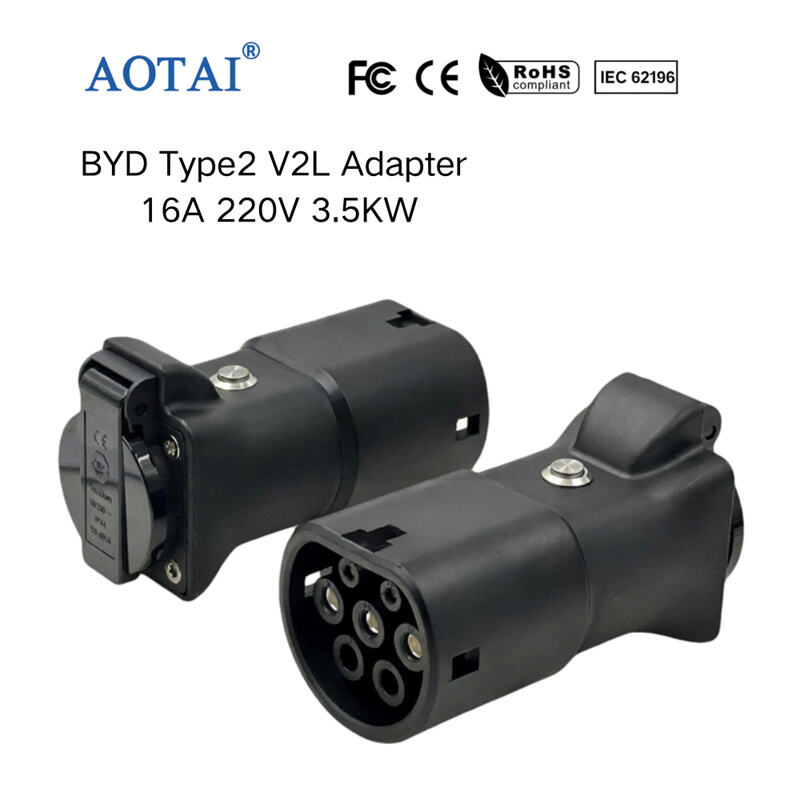

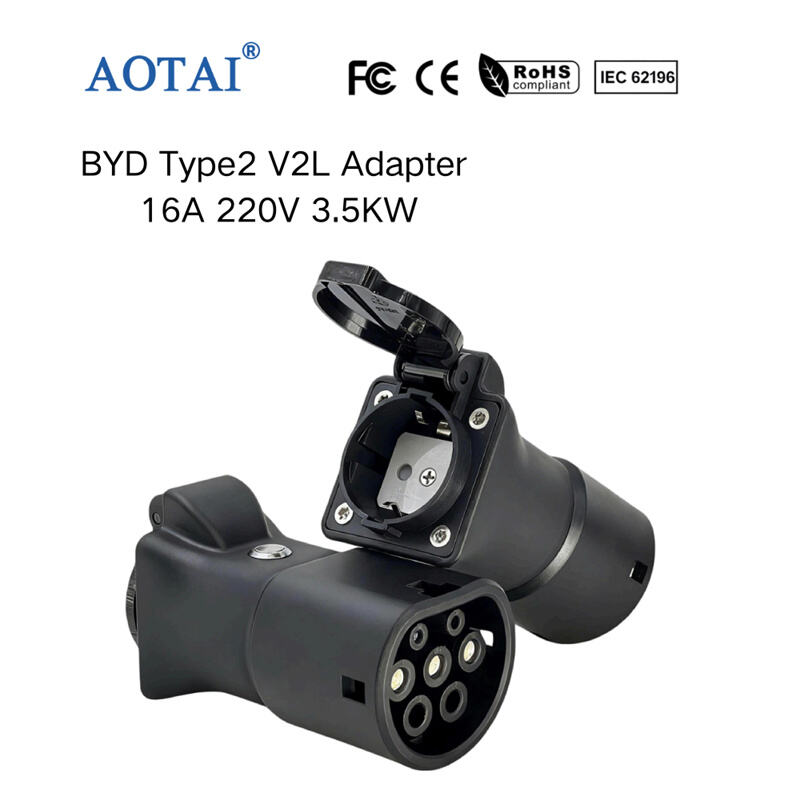

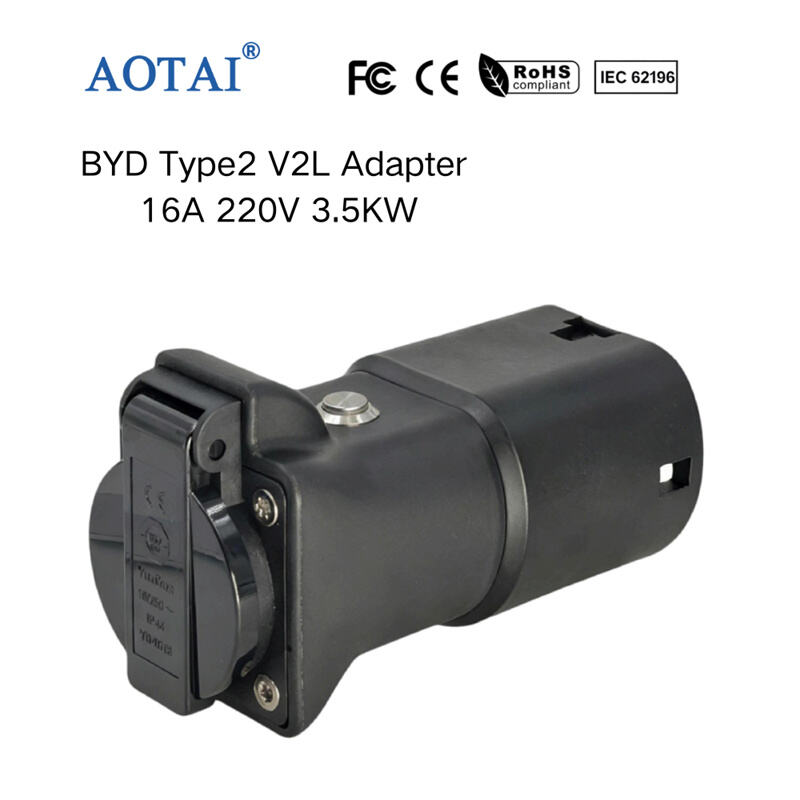

AOTAI Type 2 BYD V2L Vehicle-to-Load Adapter 3.5kW 16A 230V
A Type 2 BYD V2L (Vehicle-to-Load) adapter converts the BYD's charging port into a 230V portable power source, allowing you to run household appliances, tools, or charge other EVs directly from the car's battery.
It typically provides up to 3.6KW 16A of power, connecting via the Type 2 port with a Schuko (or country-specific) socket.
OEM / ODM Customization : Logo and packaging customization available to meet commercial and bulk purchasing requirements.
| Power: | Up to 3.54 KW |
| Rated voltage: | 110V-240V (compatible with Chinese GBT specs) |
| Current : | Up to 16A |
| Shell Materials : | Polyoxyethylene (UL94 V0) |
| Operating Temperature : | -20ºC to +55ºC |

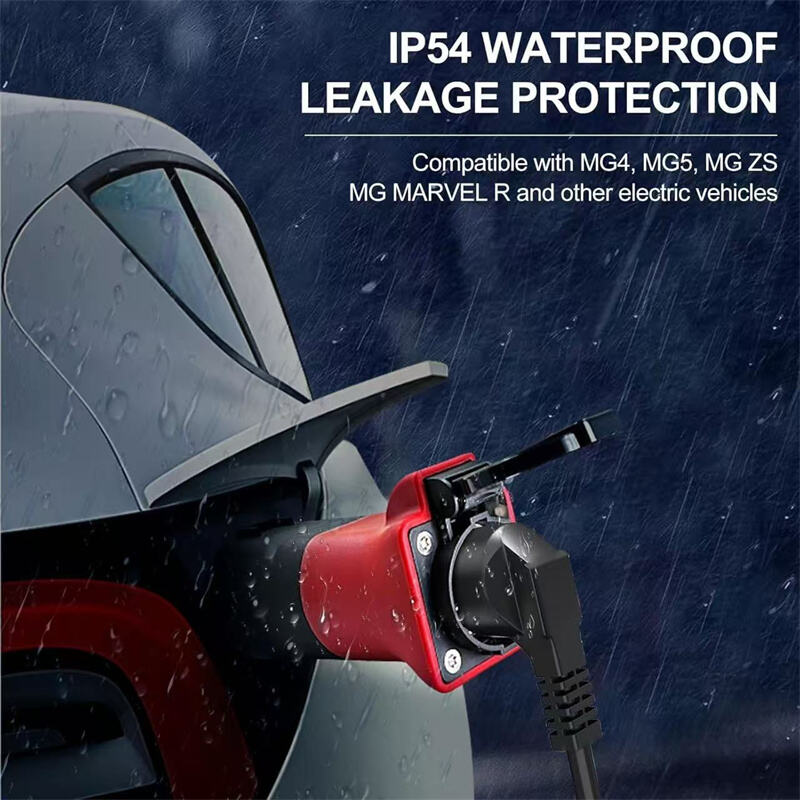

| Degree of protection : | IP45 |
| Net Weight: | 260g/0.6pounds |
| Color: | Black/Red/Yellow/Blue/Green or custom |
| Certification : | CE (TÜV), FCC, RoHS, IEC 62196 compliant |
| Compatible: | BYD Atto 3, Dolphin, Seal, and Han. |

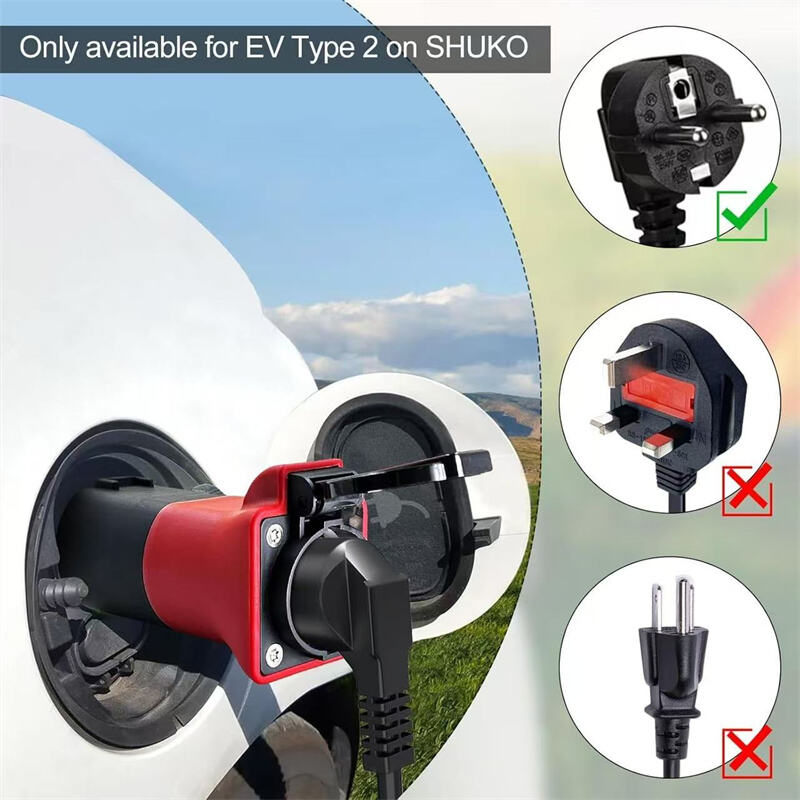

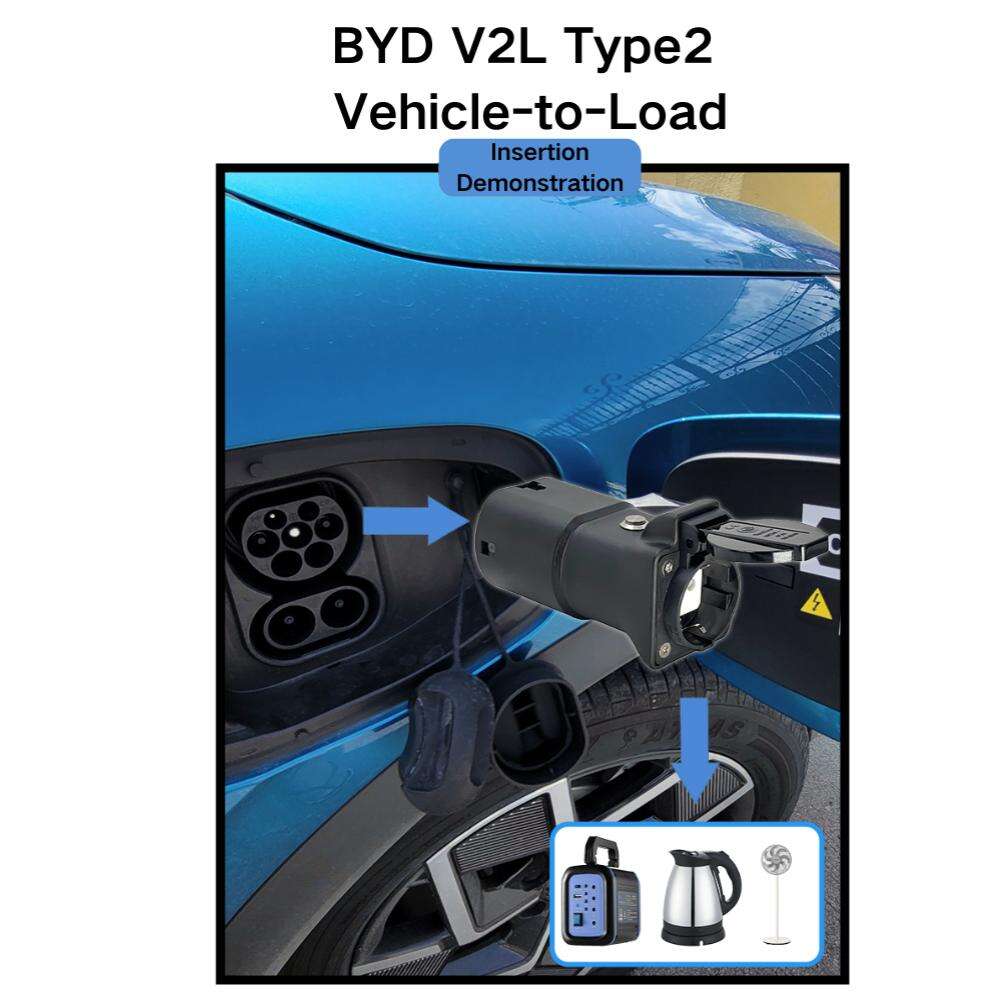

Hardware: Plug the BYD V2L Discharge Adapter (Type 2 to Schuko adapter) into the BYD car's charging port until it clicks into place.
Activation: On the BYD central touchscreen, navigate to the Energy Management or Charging menu and enable the "VTOL" (Vehicle to Load) or "Discharge" switch.
Physical Switch: Our BYD adapters also have a physical power button on the socket strip that turns red when power is active.
Locking: The BYD V2L adapter will lock to the vehicle just like a charging cable. To remove it, you must stop the discharge on the screen and unlock the car via the key fob.
BYD Atto 3 / Yuan Plus: ~2.2kW discharge.
BYD Dolphin: ~3.3kW discharge.
BYD Seal: ~3.0kW discharge.
BYD Sealion 6 (PHEV): ~2.2kW discharge via adapter.
